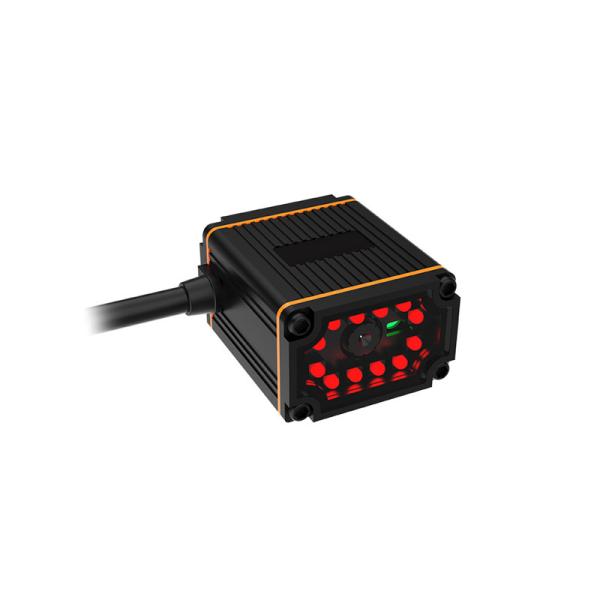

Industrial Fixed OEM 1D 2D Barcode Scanner Module

Name: Industrial Fixed OEM 1D 2D Barcode Scanner Module
Brand: Rakinda
Price: 1 USD

China Industrial Fixed OEM 1D 2D Barcode Scanner Module wholesale

Brand Name : Rakinda

Model Number : RK65

Certification : FCC Part15 Class B, CE EMC Class B

Place of Origin : China

MOQ : 1 pc

Price : Negotiation

Payment Terms : Western Union, T/T, paypal

Supply Ability : 10000 pcs per month

Delivery Time : 5-8 Working days

Packaging Details : carton package

Model : Industrial 2D Barcode Scanner Module

Interface : RS232/ USB

Image Sensor : 1280 x 800CMOS

Aiming : Green LED aiming

Dimensions : 36（W）×43（D）×24（H）

Sealing : IP65

Contact Now

Industrial Fixed OEM 1D 2D Barcode Scanner Module

Industrial Barcode Scanners Features:
Supports high-performance one-dimensional/two-dimensional barcode scanning, and has a good performance for poorly printed, contaminated or deformed barcodes that are difficult to read
RK65 has IP65 industrial protection grade, suitable for various complex industrial environments
RK65 has the ability to quickly capture mobile barcodes, and has a high degree of recognition for barcodes that move quickly in the assembly line.
RK65 adopts a large-angle optical lens, which supports fast scanning of long and thin barcodes in close proximity
USB/RS-232 multiple communication interface options, using lock-attached cables and industrial port connectors, the connection is more reliable

Parameters of Industrial QR Code Reader

Scan Performance	Resolution	1280 * 800
	Field of view	Horizontal 46° (H),Vertical 29° (V)
	Illumination	High brightness red light/High brightness white light
	Aiming	Green LED aiming
	Scan Mode	Auto sense; external pulse mode; continuous mode; serial command mode
	Symbologie s	1D	UPC A , UPC E , EAN 8 , EAN 13 , Code 128 , Code 39 , Code 93 , Code 32 , Code11 , Codabar ,Plessey , MSI , Interleaved 2 of 5 , IATA 2 of 5 , Matrix 2 of 5 , Straight 2 of 5 , Pharmacode , RSS-14 , RSS-14 Expanded , RSS-14 Limited , Composite Code-A , Composite Code-B , Composite Code-C
		2D	PDF 417 , Micro PDF 417 , Data Matrix , QR , Micro QR , Aztec , MaxiCode
	Typical depth of field	Versio n	RK65-SR	RK65-HD
		DOF	Code 39 (5mil) : 60 mm ~ 250 mm EAN-13 (13mil) : 50 mm ~400 mm QR (10 mil) : 35 mm ~ 130 mm	Code 39 (3 mil) : 50 mm ~ 90 mm Data Matrix (10 mil) : 40 mm ~ 150 mm QR (7 mil) : 35 mm ~ 120 mm
		Resol ution	1D : ≥4 mil ; 2D : ≥9 mil	1D : ≥3 mil ; 2D : ≥7 mil
	Print Contrast	≥20% (UPC/EAN 100% , PCS 90%)
Mechanical / Electrical Parameters	Dimensions (mm)	36(W)×43(D)×24(H)
	Enclosure	Aluminum alloy
	Sealing	IP65
	Indicator	Buzzer, LED
	Interface	RS232,USB (HID ; CDC),Ethernet(TCP/UDP/Modbus)
	Power	5-36 VDC
	Input	1 way out photoelectric coupled isolate input (NPN / PNP /relay)
	Output	two ways out photoelectric coupled isolate output (Good ; NG)
	Current@5 VDC	Working current 300 mA ±5%(typical), 450 mA ±5%(Max) Standby current 100 mA ±5%
Environmenta l	Storage	-40℃~+70℃
	Working	-20℃~+50℃
	ESD	±20 kV(air discharge),±8 kV(direct discharge)
Certification	CE EN55022 , FCC Part 15 Class B , CE EMC Class B

Industrial Fixed OEM 1D 2D Barcode Scanner Module
